NETWORK CABLE

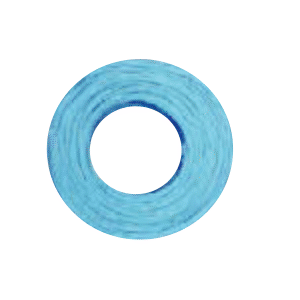

CB-BELDEN-YJ55169

LEARN MORE

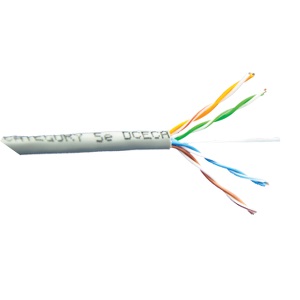

CB-CAT5E DIGILINK

LEARN MORE

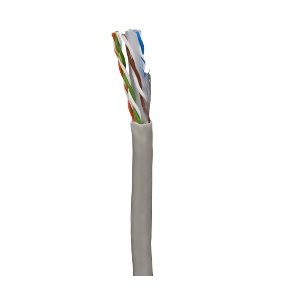

CB-CAT6 DIGILINK

LEARN MORE

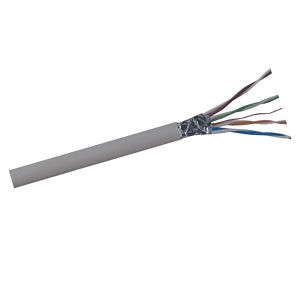

CB-RG-FTPCAT5E

LEARN MORE

CB-RG-FTPCAT6

LEARN MORE

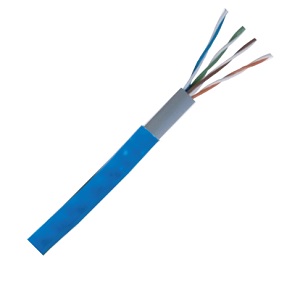

CB-RG-UTPCAT5E

LEARN MORE

CB-RG-UTPCAT6

LEARN MORE

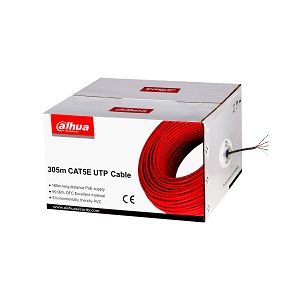

DH-PFM920I-5EUN

LEARN MORE

DH-PFM920I-6UN-C

LEARN MORE

COAXIAL CABLE

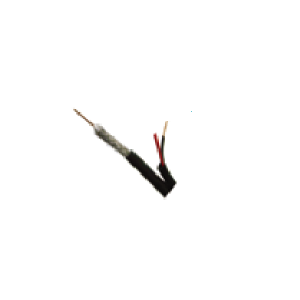

CB-RG-BC200/PW : RG59 COAXIAL CABLE + POWER

CB-RG-BC200/PW

Descriptions

DESCRIPTION
0.81mm BC,16mm /90% Al Braid
Bonded Aluminium Foil + POWER cable 6.1mm CCA, 200 meters
Indoor used , suggested to support up < 250 meters



LEARN MORE

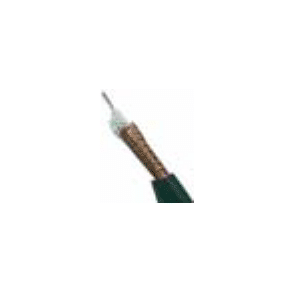

CB-VS-BC500RG6J : RG6 COAXIAL CABLE, 1.02MM

CB-VS-BC500RG6J

Descriptions

DESCRIPTION
BC, 16mm /75% AL Braid
Bonded Aluminium Foil, 500 meters
Outdoor used : Building , Factory :suggested to support up <450 meters



LEARN MORE

Alarm Cable

CB-7/0.16MM X 4C : TINTED FULL COPPER ALARM CABLE

CB-7/0.16MM X 4C

Specifications

Material
Conductor Stranded Tinned copper wire
Insulation PVC type TI-I
Sheath PVC type TI-I
Construction
Conductor Number of Copper Wires 7
Diameter of Single Copper Wire 0.16mm ± 0.005mm
Insulation Thickness of Insulation 0.32mm ± 0.03mm
Diameter of Insulation 1.12mm ± 0.05mm
Color of Insulation Red, White, Green & Black
Sheath Thickness of Sheath 0.63mm ± 0.05mm
Color of Sheath as request
Overall Diameter of Complete Cable 4.25mm ± 0.15mm
Overall Diameter of Complete Cable 70°C
Voltage 50V r.m.s
Conductor Resistance (Max.) 141 Ω/km

Download

LEARN MORE

CM-DRC-4BG : COMMAX OUTDOOR UNIT

CM-DRC-4BG

Specifications

Material
Conductor Stranded Tinned copper wire
Insulation PVC type TI-I
Sheath PVC type TI-I
Construction
Conductor Number of Copper Wires 7
Diameter of Single Copper Wire 0.20mm ± 0.005mm
Insulation Thickness of Insulation 0.29mm ± 0.03mm
Diameter of Insulation 1.18mm ± 0.05mm
Color of Insulation Red, White, Green & Black
Sheath Thickness of Sheath 0.68mm ± 0.05mm
Color of Sheath as request
Overall Diameter of Complete Cable 4.25mm ± 0.15mm
Overall Diameter of Complete Cable 70°C
Voltage 50V r.m.s
Conductor Resistance (Max.) 92 Ω/km

Download

LEARN MORE

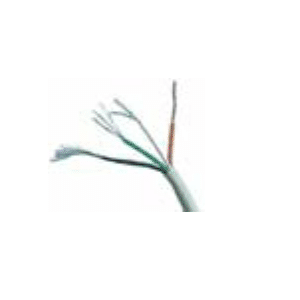

CB-7/0.20 (TCCA) : TINTED COPPER COATED ALUMINIUM ALARM CABLE

Cable Accessories

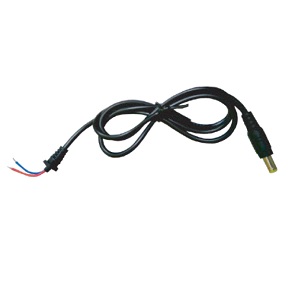

AC-DC JACK : DC JACK CABLE

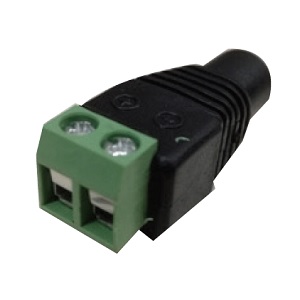

AC-DCJACK/F-T : DC JACK CABLE (POWER SUPPLY SIDE)

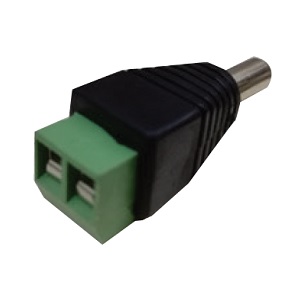

AC-DCJACK/M-T : DC JACK CABLE (CAMERA SIDE)

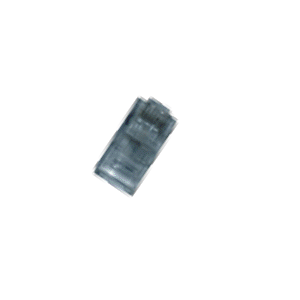

CB-RJ45/CAT5E : CAT5E RJ45 CONNECTOR

CB-RJ45/CAT6 : CAT6 RJ45 CONNECTOR
