Main Switch (Full Gigabit + Managed)

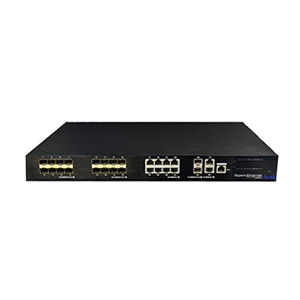

IGS168 – 16-Port SFP 8-Port UTP Gigabit Switch
CIGS168 – 16-Port SFP 8-Port UTP Gigabit Switch
Features
- Full Gigabit Network Switch
- 16 x SFP Ports, 1000 Mbps
- 8 x UTP ports, 1000Mbps
- Uplink: 2 SFP + 2 UTP GB Ports
- 70Gbps switching
- Web management software
- Standard: IEEE 802.3 /u/ab/x/3x
- 19″ 1U Rack Mount
- Surge Protection: 6KV
- 230VAC Input, Redundant Power
IGS408 – 8 – Port UTP Full Gigabit Managed Switch
IGS408 – 8 – Port UTP Full Gigabit Managed Switch
Features
- Full Gigabit L2 managed switch
- 8 x UTP ports, 1000Mbps
- 4 x uplink: 2 UTP + 2 combo, 1000Mbps
- 24 Gbps switching
- Web management software
- Standard: IEEE 802.3 /u/ab/3z
- Surge Protection: 6KV
- 230VAC Input
- CCTV mode: Standard port only communicate with uplink
- Simple mode: no managed function
IGS416P – 16 – Port Full Gigabit POE Switch with SFP
IGS416P – 16 – Port Full Gigabit POE Switch with SFP
Features
-
16x 1000Mbps POE Device Port
-
2x 1000Mbps SFP Uplink
-
2x 1000Mbps UTP Uplink
-
40Gbps switching, 2.75M Buffer
- POE Protocol : IEEE802.3af/at
-
Total POE Power :180W , Support POE+
- POE power LED indication
- Surge Protection : 6KV, 30000h MTBF
-
Web-base POE Management
-
CCTV Mode : POE ports only communicate with Uplink port.
IGS424 – 24-Port Full Gigabit Managed Switch with 4 SFP Uplink
IGS424 – 24-Port Full Gigabit Managed Switch with 4 SFP Uplink
Features
- Full Gigabit Managed Switch
- 24 nos 1000Mbps UTP Ports
- 4 nos 1000Mbps SFP Uplink
- 56Gbps Switching
- Web base L2 & POE Management
- 19″ 1U Rack Mount
- Surge Protection: 6KV
- 230VAC Input, Redundant Power
- Security features: IP, MAC, Port, VLAN binding combination
IGS448 – 8-Port UTP 4-Port SFP Full Gigabit Managed Switch
IGS448 – 8-Port UTP 4-Port SFP Full Gigabit Managed Switch
Features
- Full Gigabit L2 Managed Switch
- 8x UTP Ports, 1000Mbps
- 4x SFP Ports, 1000Mbps
- 24Gbps Switching
- Web-base management: VLAN, QoS, STP, RSTP, SNMP etc
- Standard: IEEE802.3 / u / ab / 3z
- Surge Protection: 6KV
- Redundant Power (12VDC)
- Industrial grade
- Relay Alarm Out: No power, Network Fail
IGS816 – 8-Port SFP 16-Port UTP Gigabit Switch
IGS816 – 8-Port SFP 16-Port UTP Gigabit Switch
Features
- Full Gigabit Network Switch
- 8 x 1Gbps SFP ports
- 16 x Gigabit Ethernet Ports
- Uplink: 2 SFP + 2 Ethernet GB Ports
- Standard: IEEE 802.3 /u/ab/x/3x
- 19″ 1 U rack Mount
- Surge Protection: 6KV
- Plug and play
- 230VAC Input, Redundant Power
