PoE Device Switch
IGS118P – 8-Port GB PoE Switch with 2 Uplink
IGS118P – 8-Port GB PoE Switch with 2 Uplink
Features
- 8 x 1000Mbps UTP PoE Device Port
- 1 x 1000Mbps UTP Uplink Port
- 1 x 1000Mbps SFP Uplink Port
- Standard: IEEE802.3 / u /af / at
- PoE Power: 120W Total
- Surge Protection: 6KV
- 50000h MTBF
- Plug and play
- 48VDC (Adapter Included)
- CCTV Mode: Device Port only talk to Uplink Port
IPS-216-P200 –16-Port PoE Switch with 2 Uplink
IPS-216-P200 –16-Port PoE Switch with 2 Uplink
Features
- 16 x RJ45 POE Device Port, 100 Base-T
- 1 x 1000 Mbps SFP / UTP Combo Uplink
- 1 x 1000 Mbps UTP Uplink
- 7.2 Gbps switching, 2.75M Buffer
- POE Protocol : IEEE802.3, 802.3u/ab/af/at
- POE Power : 200W Total
- Support POE+ (30W/port)
- Surge Protection: 6KV, 30000h MTBF
- CCTV Mode: POE ports only communicate with Uplink port
IPS-224-P300 –24-Port PoE Switch with 2 Uplink
IPS-224-P300 –24-Port PoE Switch with 2 Uplink
Features
- 24x RJ45 PoE Device Port, 100 Base-T
- 1x 1000Mbps SFP/UTP Combo Uplink
- 1x 1000Mbps UTP Uplink
- 8.8 Gbps switching, 2.75M Buffer
- POE Protocol : IEEE802.3, 802.3u/ab/af/at
- POE Power : 200W Total
- Support POE+ (30W/port)
- Surge Protection : 6KV, 30000h MTBF
- CCTV Mode : POE ports only communicate with Uplink port.
IPS104P-II – 4 Port PoE Switch
IPS104P-II – 4 Port PoE Switch
Features
- 2 Megapixel 1920×1080 @25fps
- H.264 High Profile
- ONVIF compatible
- 2.7-12mm Motorized Zoom&Focus Lens
- 3D-DNR, ROI, Dual Stream, DWDR, DSS, BLC
- Day&Night by Filter Change (TDN)
- 20 IR LEDs, 0 Lux up to 20m
- SMART-IR
- Build-In SD Card Slot up to 128GB
- Vandal Resistant
- Smart : Line Crossing & Intrusion
IPS108-PR – 8 Port POE Switch
IPS108-PR – 8 Port POE Switch
Features
- 8 x RJ45 POE Port, 10/100 Base-T
- 2 x RJ45 Uplink Port, 10/100 Base-T
- Standard: IEEE802.3 i/u/af/at
- POE Power: 80W Total
- Single Port Max: 30W
- Surge Protection: 3KV
- Network Delay: 20us
- 30000h MTBF
- Plug & Play
- 48VDC (Adapter Included)
- Recommend used in indoor condition
IPS108P – 8 Port PoE Switch
IPS108P – 8 Port PoE Switch
Features
- 8 x RJ45 POE Device Port, 10 Base-T
- 1 x RJ45 Uplink Port, 100 Base-T
- POE Protocol: IEEE802.3af
- POE Power: 15.4 / port
- Surge Protection: <1KV
- 30000h MTBF
- Plug and play
- 48VDC (Adapter Included)
IPS108P-II – 8 Port PoE Switch
BR618T MAG TELESCOPIC ARM BARRIER GATE
Features
- 8x RJ45 POE Device Port 10/100 Base-T
- 2 x RJ45 Uplink Port, 10/100/1000 Base-T
- Standard: IEEE 802.3/u/af/at
- POE Power : 120W Total
- Surge Protection: 6KV
- 50000h MTBF
- Plug and play
- 48VDC (Adapter Included)
- CCTV Mode:
- Device port only talk to uplink port
- POE port change to 10Mbps / 250m

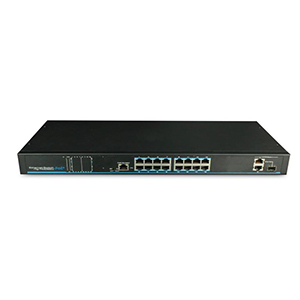

IPS216P – 16 Port Unmanaged POE Switch with SFP Uplink
IPS216P – 16 Port Unmanaged POE Switch with SFP Uplink
Features
- 16 x RJ45 POE Device Port, 100 Base-T
- 1 x 1000 Mbps SFP / UTP Combo Uplink
- 1 x 1000 Mbps UTP Uplink
- 7.2 Gbps switching, 2.75M Buffer
- POE Protocol: IEEE 802.3af/at
- POW Power: 15.4 / Port, 100m
- Surge Protection: 6KV, 30000h MTBF
- CCTV Mode: POE ports only communicate with Uplink port
IPS224P – 24 Port Unmanaged POE Switch with SFP Uplink
IPS224P – 24 Port Unmanaged POE Switch with SFP Uplink
Features
- 24 x RJ45 POE Device Port, 100 Base-T
- 1 x 1000 Mbps SFP / UTP Combo Uplink
- 1 x 1000 Mbps UTP Uplink
- 8.8 Gbps switching, 2.75 buffer
- POE Protocol: IEEE 802.3 af/at
- POE Power: 15.4 W / port, 100m
- Surge protection: 6KV, 30000h MTBF
- CCTV Mode: POE ports only communicate with Uplink port
