4000-Series IP Solution CAMERAS
CNC41260 – 12MP Fisheye Camera
CNC41260 – 12MP Fisheye Camera
Features
- 12 Megapixel
- Fisheye view or Panorama View
- Ceiling mount or Wall mount
- H.264
- 1.98mm 360o Fisheye Lens
- 3D-DNR, Dual Stream, DWDR
- Day&Night by Filter Change (TDN)
- LED Array, 0 Lux up to 15m
- Build-in Microphone & Speaker
- Alarm In/Out, Audio In/Out
- uSD Card storage up to 128GB
- Line Crossing / Intrusion Detection
- IP66
CNC4300 – 2MP PoE IP Box Camera
BR618T MAG TELESCOPIC ARM BARRIER GATE
Features
- 2.0 Megapixel 1620 x 1080 @25fps
- H.264 High Profile
- ONVIF compatible
- CS-Mount Lens (Not Included)
- 3D-DNR
- Dual Stream
- Day & Night by Filter Change
- Network 10/100 Base-T
- Support up to 32GB SD Card
- 2-Way Audio
- Analog Video Output
- 64ch CMS Software included
CNC4310 – II – 2MP Mini POE Weatherproof IR IP Camera
CNC4310 – II – 2MP Mini POE Weatherproof IR IP Camera
Features
- 2.0 MP 1920×1080 @25fps
- H.265+ Compression
- OMVIF compatible
- 2.8mm or 4mm fixed lens
- 3D-DNR, DWDR, DSS
- ROI, Mirror, Privacy, Mask
- Dual Stream, 10/100 Base-T
- Day & Night by Filter Change
- 30m IR Range
- Support uSD card up to 128GB
- Reset key
- Smart: Line crossing & intrusion detection
- Vandal resistant
CNC4312M – 2MP POE IR IP Motorized Dome
CNC4312M – 2MP POE IR IP Motorized Dome
Features
- 2 Megapixel 1920×1080 @25fps
- H.264 High Profile
- ONVIF compatible
- 2.7-12mm Motorized Zoom&Focus Lens
- 3D-DNR, ROI, Dual Stream, DWDR, DSS, BLC
- Day&Night by Filter Change (TDN)
- 20 IR LEDs, 0 Lux up to 20m
- SMART-IR
- Build-In SD Card Slot up to 128GB
- Vandal Resistant
- Smart : Line Crossing & Intrusion
CNC4313-M-II – 2MP Motorized IR IP Dome
CNC4313-M-II – 2MP Motorized IR IP Dome
Features
- Up to 2 Megapixel @25fps
- H.265+ Compression
- ONVIF compatible
- 2.8-12mm Motorized Lens
- 120dB True WDR
- 3D-DNR, BLC, DSS
- Day&Night by Filter Change (TDN)
- IR LEDs, 0 Lux up to 30m
- SMART-IR
- Build-In SD Card Slot up to 128GB
- Vandal Resistant • Smart : Line Crossing & Intrusion
- Audio+Alarm (Optional)
CNC4331 – 2MP H.265+ IR IP Bullet Camera
CNC4331 – 2MP H.265+ IR IP Bullet Camera
Features
- 2.0 MP 1920 * 1080 @25fps
- H.265+ compression
- ONVIF compatible
- 4mm fixed lens
- 3D-DNR, DWDR, DSS
- ROI, Mirror, Privacy Mask
- Dual Stream, 10/100 Base-T
- Day & Night by filter change
- 20m IR Range
- Reset button
- Support uSD card up to 128GB
- Smart: Line crossing & Intrusion detetion
CNC4333 – 2MP H.265+ IR IP Bullet Camera
CNC4333 – 2MP H.265+ IR IP Bullet CameraCNC4333 – 2MP H.265+ IR IP Bullet Camera
Features
- 2 Mega Pixels 1920×1080 @25fps
- H.265+ Compression
- ONVIF compatible
- 4mm Fixed Lens
- 3D-DNR, DWDR. DSS
- ROI, Mirror, Privacy Mask
- Up to 6 Simultaneous Live View
- Dual Stream, 10/100 Base-T
- Day&Night by Filter Change
- 30m IR Range
- Reset Button
- Support mSD card up to 128GB
- Smart : Line Crossing & Intrusion
Detection
CNC4333M-II – 2MP POE IR Motorized Varifocal Camera
CNC4333M-II – 2MP POE IR Motorized Varifocal Camera
Features
- Up to 2 Megapixel @25fps
- H.265+ video compression
- 2.8 – 12mm motorized lens
- 120dB true WDR
- 2.7 – 12mm motorized zoom / focus
- 3D-DNR, ROI, Dual Stream, DWDR, DSS, BLC
- Day & Night by filter change (TDN)
- 6 lux up to 30m
- Build in uSD card slot up to 128GB
- IP66
- Optional: Junction box
- Smart: Intrusion, line crossing
CNC4335-SL – 2MP 50m IR Starlight Weatherproof IP Camera
CNC4335-SL – 2MP 50m IR Starlight Weatherproof IP Camera
Features
- 2 Megapixel 1920×1080 @25fps
- H.264 High Profile
- ONVIF compatible
- 4 / 6 mm Fixed Lens
- 120dB WDR, DSS, 3D-DNR, BLC
- ROI, Mirror, Privacy Mask
- 3-Stream, 10/100 Base-T
- Day & Night by Filter Change
- Starlight (0.005 Lux @F1.2)
- LED Array, 0 Lux up to 50m
- Support uSD card up to 128GB
- IP67 Weatherproof
- On Key Reset, IP Address Filter
CNC4335M-SL – 2MP 50m Starlight Motorized IP Camera
CNC4335M-SL – 2MP 50m Starlight Motorized IP Camera
Features
- 2.0MP 1920 x 1080 @25fps
- H.265+ High Profile
- ONVIF Compatible
- 2.8-12mm Motorized Lens
- 120dB WDR, DSS, 3D-DNR, BLC
- ROI, Mirror, Privacy Mask, 3-Stream
- Day & Night by Filter Change
- Starlight (0.005 Lux @F1.2)
- LED Array, 0 Lux up to 50m
- Support uSD card up to 128GB
- Audio: 1 in 1 out
- Alarm: 1 in 1 out
- IP67 Weatherproof
- 1 Key Reset, IP address filter
CNC435S20 – 2MP 20X Indoor Surface/Recessed Speedome
CNC435S20 – 2MP 20X Indoor Surface/Recessed Speedome
Features
Camera
- 2.0 Megapixel 1920×1080 @25fps
- H.264 High Profile
- 20x Optical Zoom
- Auto-Iris, Auto-Focus
- 3D-DNR, Dual Stream
- Day & Night by Filter Change
- 0.05 Lux Color
- ONVIF compatible
- Web-server
Hardware
- Indoor Surface / Recessed Ceiling Mount
- 360o Continuous Pan
- Max 300o /s Pan Preset Speed
- Max 200o /s Tilt Preset Speed
- 1~250o /s Manual Pan Speed
- 1~150o /s Manual Tilt Speed
- 256 Programmable Presets
- 8 Tour (up to 32 presets each)
- mSD card local storage up to 32GB
- 1 Audio In, 1 Audio Out
CNC435W20 – 2.0M 20X IP Speedome
CNC435W20 – 2.0M 20X IP Speedome
Features
Camera
- 2.0 Megapixel 1920×1080 @25fps
- H.264 High Profile
- 20x Optical Zoom
- Auto-Iris, Auto-Focus
- 3D-DNR, Dual Stream
- Day & Night by Filter Change
- 0.05 Lux Color
- ONVIF compatible
- Web-server
Hardware
- Weatherproof IP66
- 360o Continuous Pan
- Max 300o /s Pan Preset Speed
- Max 200o /s Tilt Preset Speed
- 1~250o /s Manual Pan Speed
- 1~150o /s Manual Tilt Speed
- 256 Programmable Presets
- 8 Tour (up to 32 presets each)
- SD card local storage up to 32GB
- 1 Audio In, 1 Audio Out
CNC435W20IR – 2.0M 20X 100m IR IP Speedome
CNC435W20IR – 2.0M 20X 100m IR IP Speedome
Features
Camera
- 2.0 Megapixel 19202×1080 @25fps
- H.264/H.265 Compression
- 20x Optical Zoom
- 16X Digital Zoom
- Auto-Iris, Auto-Focus
- DWDR, 3D-DNR, Defog, HLC, BLC
- Day & Night by Filter Change
- IR Range up to 100m
- IR Intensity automatic adjust depend on zoom ratio
- 8 Privacy Mask
- Web-server
Hardware
- Weatherproof IP66
- 360o Continuous Pan
- 0.1~80o /s Pan Speed
- 0.1~80o /s Tilt Speed
- 300 Programmable Presets
- 8 Tour (up to 32 presets each)
- mSD card local storage up to 32GB
- 12VDC, 20W Max.
CNC445W30 – 3MP 30x IP Speedome
CNC445W30 – 3MP 30x IP Speedome
Features
- 3 Megapixel 2048 x 1536 @25fps
- H.264 High Profile
- 30x Optical, 16x Digital Zoom
- 0.05 Lux Color / 0.01 Lux BW
- Auto-Iris, Auto-Focus TDN
- 3D-DNR, Tri-Stream, 120dB WDR
- HLC/BLC, Defog, Smart-IR, ROI
- ONVIF Compatible
CNC445W30IR – 3MP 30x 150m IR IP Speedome
CNC445W30IR – 3MP 30x 150m IR IP Speedome
Features
- 3 Megapixel 2048 x 1536 @25fps
- H.264 High Profile
- 30x Optical, 16x Digital Zoom
- 0.05 Lux Color / 0.01 Lux BW
- Auto-Iris, Auto-Focus TDN
- 3D-DNR, Tri-Stream, 120dB WDR
- HLC/BLC, Defog, Smart-IR, ROI
- IR Range: 150m
- ONVIF Compatible
CNC448W20IR – 3MP 20x IP IR PTZ
CNC448W20IR – 3MP 20x IP IR PTZ
Features
- 3 Megapixel 2048 x 1536 @25fps
- H.264 High Profile
- 20x Optical, 16x Digital Zoom
- 0.05 Lux Color / 0.01 Lux BW
- 100m IR Range
- Auto-Iris, Auto-Focus, TDN
- 3D-DNR, Tri-Stream, 120dB WDR
- HLC / BLC, Defog, Smart-IR, ROI Hardware
CNC4510 – II – 4MP Mini POE IR IP Dome Camera
CNC4510 – II – 4MP Mini POE IR IP Dome Camera
Features
- 4MP 2688×1520 @25fps
- H.265+ compression
- ONVIF compatible
- 4mm Fixed Lens
- 120dB WDR, 3D-DNR, DSS
- ROI, Mirror, Privacy Mask
- 10/100 Base-T
- Day&Night by Filter Change
- 30 IR LED, 0 Lux up to 20m
- Support uSD card up to 32GB
- 3 – Stream
- Smart : Line Crossing, Intrusion & Face Detection
- Vandal Resistant
CNC4530-II – 4MP H.265+ WDR Weatherproof IR Camera
CNC4530-II – 4MP H.265+ WDR Weatherproof IR Camera
Features
- 4MP 2560×1440 @25fps
- H.265+ Compression
- ONVIF compatible
- 4mm Fixed Lens
- 120dB WDR, 3D-DNR, DSS
- ROI, Mirror, Privacy Mask
- 10/100 Base-T
- Day&Night by Filter Change
- LED Array, 0 Lux up to 20m
- Support uSD card up to 128GB
- 3-Stream
- Smart : Line Crossing, Intrusion &
Face Detection - IP67 Weatherproof
CNC4533V – 4MP Weatherproof Varifocal PoE Camera, 30m IR
CNC4533V – 4MP Weatherproof Varifocal PoE Camera, 30m IR
Features
- Up to 4 Megapixel Resolution
- H.264/H.264+ Compression
- ONVIF compatible
- 2.8-12mm Varifocal Lens
- 3D-DNR, ROI, Dual Stream
- 120dB WDR, DSS
- Day&Night by Filter Change (TDN)
- 0 Lux up to 30m
- 1 Alarm In. 1 Alarm out
- Build-in SD-Card slot up to 128GB
- IP66
- Optional : Junction Box
- Smart : Intrusion, Line Crossing
CNC4535 – 4MP WDR 50m IR Weatherproof Camera
CNC4535 – 4MP WDR 50m IR Weatherproof Camera
Features
- 2 Megapixel 1920×1080 @25fps
- H.264+, ONVIF
- 12VDC / POE Dual Power
- 6mm Fixed Lens
- 120dB True WDR
- 3D-DNR, Dual Stream, ROI
- Day & Night by Filter Change
- 0 Lux up to 50m
- Network 10/100 Base-T
- Line Crossing / Intrusion Detection
- Android, iPhone / iPad Application
- IE & 64ch CMS Software Included
- IP67 Weatherproof

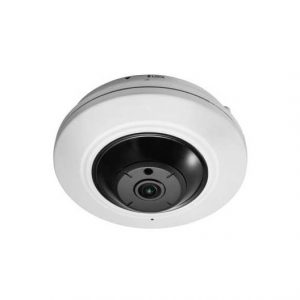

CNC4561 – 5MP POE Fisheye Camera
CNC4561 – 5MP POE Fisheye Camera
Features
- 5 Megapixel 2560 x 1440 @25fps
- H.265+/H.264+, ONVIF compatible
- 1.16mm 180 degree Fisheye Lens
- 3D-DNR, Dual Stream
- Wall/ Ceiling/ Desktop mode
- LED Array, 0 Lux up to 8m
- Build-in Mic
- Audio 1 in/ 1 out, Alarm 1 in/ 1 out
- uSD card storage up to 128GB
- Alarm Trigger: Line Crossing, intrusion, motion detection, unattended baggage, object removal, face detection etc
CNC4610 – 6MP H.265+ WDR IR Dome Camera
CNC4610 – 6MP H.265+ WDR IR Dome Camera
Features
- 4MP 2688×1520 @25fps
- H.265+ compression
- ONVIF compatible
- 4mm Fixed Lens
- 120dB WDR, 3D-DNR, DSS
- ROI, Mirror, Privacy Mask
- 10/100 Base-T
- Day&Night by Filter Change
- 30 IR LED, 0 Lux up to 20m
- Support uSD card up to 32GB
- 3 – Stream
- Smart : Line Crossing, Intrusion & Face Detection
- Vandal Resistant
CNC4613M – 6MP H.256+ WDR Motorized Dome Camera
CNC4613M – 6MP H.256+ WDR Motorized Dome Camera
Features
- Up to 6 Megapixel @20fps
- H.265+ Video Compression
- 2.8 ~ 12mm Motorized Lens
- ROI, Smart IR, TDN etc
- 0 Lux up to 30m
- True WDR: 120dB
- Alarm 1 in & 1 out
- Audio 1 in & 1 out
- Build-in uSD slot up to 128GB
- IP67, Vandal resitant
- 3 – Stream
- Face Detection, Line Crossing, Intrusion, Unattended Baggage, Object Removal
CNC4630 – 6MP H.265+ WDR Weatherproof IR Camera
CNC4630 – 6MP H.265+ WDR Weatherproof IR Camera
Features
- 6MP 3072 x 2048 @20fps
- H.265+ Compression
- ONVIF compatible
- 4mm Fixed Lens
- 120dB WDR, 3D-DNR, DSS
- ROI. Mirror, Privacy Mask
- Dual Stream, 10/100 Base-T
- Day & Night by Filter Change
- LED Array, 0 Lux up to 20m
- Support uSD card up to 128GB
- Reset Key
- Smart: Line Crossing, Intrusion & Face Detection
- IP67 Weatherproof
CNC4635M – 6MP H.265+ WDR Motorized IR Bullet Camera
CNC4635M – 6MP H.265+ WDR Motorized IR Bullet Camera
Features
- Up to 6 Megapixel @20fps
- H.265+ Video Compression
- 2.8-12mm Motorized Lens
- ROI, Smart IR, TDN etc
- 0 Lux up to 50m
- True WDR : 120dB
- Alarm 1 In & 1 out
- Audio 1 In & 1 out
- Build-In uSD Slot up to 128GB
- IP67, Vandal Resistant
- 3-Sstream
- Face Detection, Line Crossing, Intrusion, Unattended Baggage, Object Removal
CNC4660 – 6M POE Fisheye Camera
CNC4660 – 6M POE Fisheye Camera
Features
- 6 Megapixel 3072×2048 @25fps
- H.264 High Profile
- ONVIF compatible
- 1.05mm 180o Fisheye Lens
- 3D-DNR, Dual Stream
- Day&Night by Filter Change (TDN)
- LED Array, 0 Lux up to 15m
- Build-in Audio Mic, Audio In/Out
- 1 Alarm In / 1 Alarm Out
- uSD Card storage up to 64GB
- IE, Firefox, Chrome support
- Android, iPhone/iPad application
- 64ch CMS Software include
CNC4835 – 8M WDR 50m IR Weatherproof Camera
CNC4835 – 8M WDR 50m IR Weatherproof Camera
Features
- 8 Megapixel 2688×1520 @20fps
- H.265+, ONVIF
- 12VDC / POE Dual Power
- 4mm Fixed Lens
- 120dB True WDR
- 3D-DNR, 3-Stream, ROI, TDN
- 0 Lux up to 50m
- Network 10/100 Base-T
- uSD up to 128GB
- Line Crossing, Intrusion, Object Removal, Unattended Baggage, Face Detection etc
- IP67 Weatherproof
- Junction Box Inc.
CNC4835M – 8MP WDR 50m IR Weatherproof Camera
CNC4835M – 8MP WDR 50m IR Weatherproof Camera
Features
- 8 Megapixel 2688 x 1520 @ 20fps
- H.265+, ONVIF
- 12VDC / POE Dual Power
- 2.8-12mm Motorized Zoom Lens
- 120dB True WDR
- 3D-DNR, 3-Stream, ROI, TDN
- 0 Lux up to 50m
- Network 10/100 Base-T
- uSD up to 128GB
- IP67 Weatherproof
4000-Series IP Solution NVR
HN-4216-II – 16h Stand-Alone NVR
HN-4216-II – 16h Stand-Alone NVR
Features
- ONVIF compatible
- H.264 High Profile Recording up to:
- 400fps @720p (1280 x 720)
- 200fps @1080p (1920 x 1080)
- 100fps @3MP (2048 x 1536)
- Full HD 1080P HDMI & VGA output
- 16ch Simultaneous Playback
- Up to 2HDD (4TB Each)
- Support SMART HDD bad detection
- Backup: USB (External HDD or Pendrive), TCP/IP Network
- Motion Detect, Anti-Vandalism
- Mobile S/W for iPhone/iPad/ Android
- 64ch CMS Software included
HN4108 – II – 8ch Linux Base Stand-Alone NVR
HN4108 – II – 8ch Linux Base Stand-Alone NVR
Features
- ONVIF compatible
- H.264 / H.264+ Recording up to 8MP IP Cameras
- *ch Real-Time Display for all Channel
- Full HD 1080p HDMI & VGA output
- Up to 1 SATA HDD (Max 6TB)
- Support SMART HDD bad sector detection
- Backup: USB (External HDD or pendrive), TCP / IP Network.
- 1 x USB 20. & 1 x USB 3.0
- Mobile S/W for iPhone / iPad / Android
- 64ch CMS Software included
- Support VCA (Video Content Analytics) from Smart IPC
HN4216-4K – 16ch 4K NVR
HN4216-4K – 16ch 4K NVR
Features
- 16ch 12MP IP cameras
- H.265 Compression
- 4K HDMI & 2K VGA output
- Independent VGA/HDMI display
- 16ch 1080p Simultaneous Playback
- Up to 2 HDD (6TB Each)
- Support S.M.A.R.T HDD bad detection
- Backup: USB (External HDD or Pendrive), TCP/IP Network
- Motion Detection + Continuous Recording
- 2 USB
- Alarm: 4 in / 1 out
- 2-way Audio
- Remote Connection: 128
- VCA Support: Line Crossing, Face Detection, Object Removal etc
HN4432 – 32ch Linux Base Stand-Alone NVR
HN4432 – 32ch Linux Base Stand-Alone NVR
Features
- H.264+, ONVIF compatible
- Display & Recording IPC 1MP ~ 6MP
- Full HD 1080p HDMI & VGA output
- 16ch Simultaneous Playback
- Up to 4 SATA HDD (6TB each)
- Support S.M.A.R.T HDD bad detection
- Backup : USB (External HDD or pendrive), TCP/IP Network
- Smart Search for Selected Area
- 2 Network Port for Multi-address, Load Balance, Network Fault Tolerance
- VCA Search : Behavior, Face, People Counting, Heat Map, Number Plate
- USB x3
- Support 2-way Audio
HN4432-4K – 32ch Linux Base Stand-Alone NVR
HN4432-4K – 32ch Linux Base Stand-Alone NVR
Features
- H.265+, ONVIF compatible
- Display & Recording IPC up tp 8MP
- Full HD 1080p HDMI & VGA output
- 16ch 1080P Simultaneous Playback
- Up to 4 SATA HDD (6TB each)
- 4K HDMI output
- Backup: USB(External HDD or pendrive), TCP/IP Network
- Smart Search for Multi-address, Load Balance Network Fault Tolerance
- USB x3
- Support 2-way Audio
HN4832-4K – 32ch Stand-Alone NVR
HN4832-4K – 32ch Stand-Alone NVR
Features
- Linux base. ONVIF compatible
- H.264 / H.264+ compression
- Independent HDMI/VGA1 & HDMI/VGA2 display
- HDMI 1 support 4K monitor output
- Easy Front-Load 8HDD (6TB Each)
- RAID 0, 1, 5 & 10
- Support Hot-Spare
- Support IP Cameras up to 12MP
- Dual LAN port
- 320 Mbps Incoming
- HDD quota management
- 1 eSATA for Backup & Recording
- 2x USB2.0, 1x USB3.0
- 19” Rack-mount 2U chasis
HN4864-4K – 64ch Stand-Alone NVR with RAID
HN4864-4K – 64ch Stand-Alone NVR with RAID
Features
- Linux base. ONVIF compatible
- H.265+ / H.264+ compression
- Independent HDMI / VGA1 & HDMI / VGA2 display
- HDMI 1 support 4K monitor output
- Easy Front-Load 8 HDD (6TB each)
- RAID 0, 1, 5 & 10
- Support Hot-Spare
- Support IP Cameras up to 12MP
- Dual LAN port
- 320 Mbps Incoming
- HDD quota management
- 1 eSATA for Backup & Recording
- 2 x USB2.0, 1 x USB3.0
- 19″ Rack-mount 2U chasis
