MAG BARRIER GATE

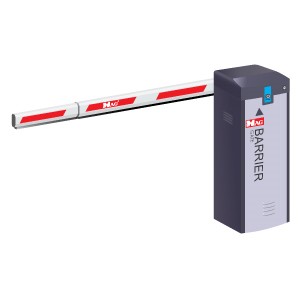

BR618T MAG TELESCOPIC ARM BARRIER GATE

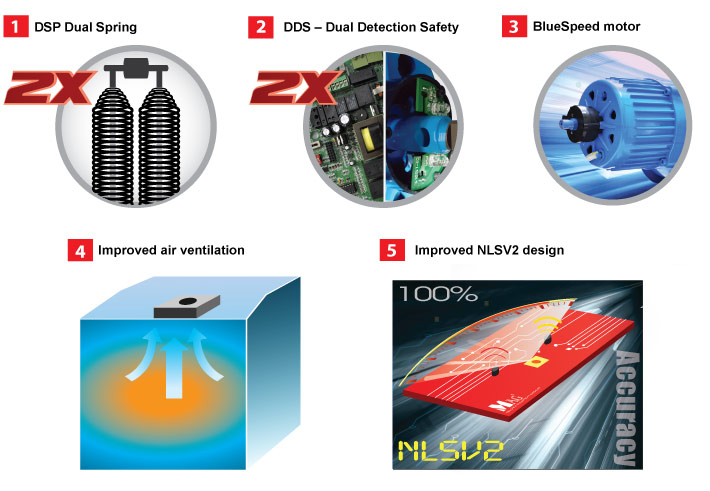

– New blue speed motor
– Modern stylish design
– Arm length : 4 meters
– Speed : 1.8 second
– Telescopic arm optional foam lining
BR618T MAG TELESCOPIC ARM BARRIER GATE
BR618T’s fast 1.8 sec opening is designed to allow higher traffic pass through rate and reduce congestion during peak hour. BR618T new BlueSpeed motor technology reduce maintenance cost. New NLS positioning and dual spring engine to achieve smoother motion
BR630T MAG TELESCOPIC ARM BARRIER GATE
– New Bluespeed motor
– Modern stylish design
– Arm length : 4 meters
– Speed : 3 second
– Telescopic arm optional foam lining
BR630T MAG TELESCOPIC ARM BARRIER GATE
BR630T’s standard 3 sec speed is optimized to be more affordable for site with medium traffic. BR630T new BlueSpeed motor technology reduce maintenance cost. New NLS positioning and dual spring engine to achieve smoother motion.
BR660T MAG TELESCOPIC ARM BARRIER GATE
– New Bluespeed motor
– Modern stylish design
– Arm length : 6 meters
– Speed : 6 second
– Telescopic arm optional foam lining
BR660T MAG TELESCOPIC ARM BARRIER GATE
BR660T is a heavy duty security gates that can support up to 6-meter arm with slow steady 6 sec opening speed. BR660T is ideal for an industrial factory that requires the widest entrance in order to accommodate the big truck. BR660T new BlueSpeed motor technology reduces maintenance cost. BR660T new NLS positioning and improved dual spring engine to achieve smoother motion.

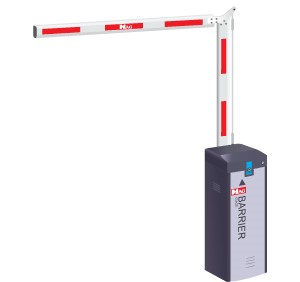

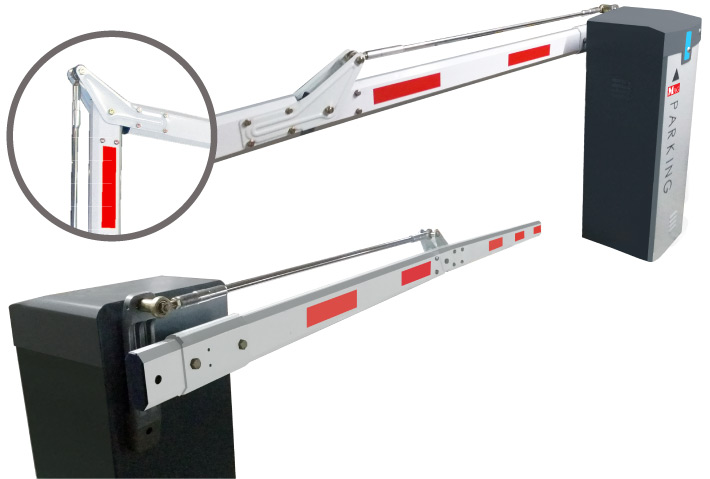

BR618T_90 MAG FOLDING ARM BARRIER GATE
– New Blue speed motor
– Modern stylish design
– Arm length : 4 meters
– Speed : 1.8 second
– Folding arm optional foam lining
BR618T_90 MAG FOLDING ARM BARRIER GATE
BR618T_90’s support 90˚ folding arm to accommodate low height ceiling and also fast 1.8 sec opening to allow higher traffic pass through rate and reduce congestion during peak hour. BR618T_90 new BlueSpeed motor technology reduce maintenance cost. New NLS positioning and dual spring engine to achieve smoother motion.
BR630T_90 FOLDING ARM BARRIER GATE
– New Blue speed motor
– Modern stylish design
– Arm length : 4 meters
– Speed : 3 second
– Folding arm optional foam lining
BR630T_90 FOLDING ARM BARRIER GATE
BR630T_90’s MAG folding arm parking barrier gate support 90˚ folding arm to accommodate low height ceilings such as basement parking and multi-level parking. BR630T_90 new BlueSpeed motor technology reduces maintenance cost. New NLS positioning and dual spring engine to achieve smoother motion.

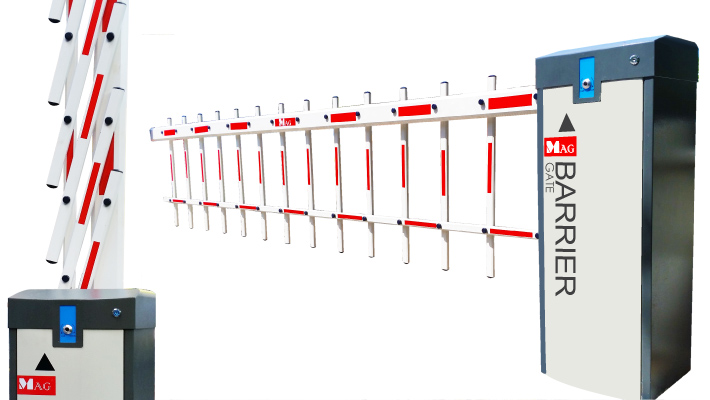

BR650T_FE MAG FENCE ARM BARRIER GATE
– New bluespeed motor
– Modern stylish design
– Arm length : 4.5 meters
– Speed : 6 second
– Fence arm
BR650T_FE MAG FENCE ARM BARRIER GATE
BR660T_FE MAG fence arm barrier gate has built in grill fence underneath the arm.BR660T_FE eliminate the possibility of pedestrian gaining unauthorized access by crawling under the barrier arm. Therefore BR660T_FE can effectively control access of vehicle and pedestrian at the same time to achieve higher security level.

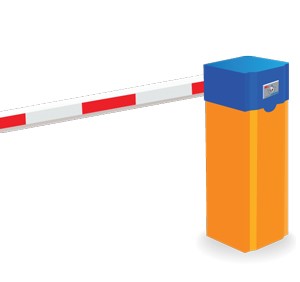

BR530 MAG STRAIGHT ARM BARRIER GATE
-NLS Technology
-Standard common design
-Arm length : 4 meters
-Speed : 3 second
-Optional arm protection foam lining
BR530 MAG STRAIGHT ARM BARRIER GATE
BR530’s standard 3 sec speed is optimized to be more affordable for site with medium traffic. BR530 can support maximum 4 meter arm that can fully cover the width of typical car lane. BR530 is the best seller model that is most commonly installed in residential and commercial building.
- No limit switch. Smart sensor auto-detects open and close position for higher accuracy. Combination of unique lever design and smart motor control allow swift arm movement that reduces bouncing at end position.
- Heavy duty. AC motor is stronger and maintenance free (no need to change carbon). Compressed counter balance spring avoid possibility of spring over-stressed and break due to high volume continuous open/close cycle.
- Safe. Arm will auto-reverse when hitting an obstacle during closing. Additional photo beam and traffic light (red & green) can be added to further enhance safety. Built-in MCB to protect against any electric hazard.
- Durable. Sturdy and strong housing (2.5 mm thickness mild steel). Housing is polished, phosphorized and further finished with plastic coating to ensure long lasting bright colors.
- Secure. All internal parts inside housing is protected by cam lock to avoid tampering.

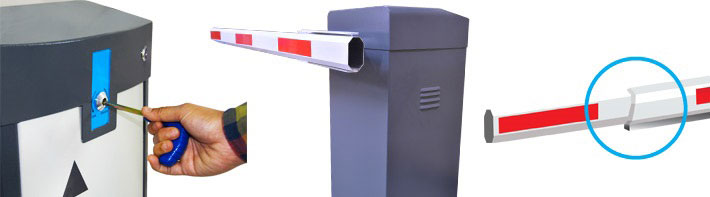

- User friendly. Clutch can be conveniently released without opening casing. Arm can be easily lifted or closed by hand after clutch is released. More intuitive control – 3 separate input for arm up, stop and down.
BR560 MAG STRAIGHT ARM BARRIER GATE
-NLS Technology
-Standard common design
-Arm length : 6 meters
-Speed : 6 second
-Optional arm protection foam lining
BR560 MAG STRAIGHT ARM BARRIER GATE
BR560 is a heavy duty barrier that can support up to 6 meter arm with slow steady 6 sec opening speed. BR560 is ideal for industrial factory that requires widest entrance in order to accommodate big truck. With 2 units BR560 installed facing each other; we can achieve maximum 12 meter space clearance at entrance.
- No limit switch. Smart sensor auto-detects open and close position for higher accuracy. Combination of unique lever design and smart motor control allow swift arm movement that reduces bouncing at end position.
- Heavy duty. AC motor is stronger and maintenance free (no need to change carbon). Compressed counter balance spring avoid possibility of spring over-stressed and break due to high volume continuous open/close cycle.
- Safe. Arm will auto-reverse when hitting an obstacle during closing. Additional photo beam and traffic light (red & green) can be added to further enhance safety. Built-in MCB to protect against any electric hazard.
- Durable. Sturdy and strong housing (2.5 mm thickness mild steel). Housing is polished, phosphorized and further finished with plastic coating to ensure long lasting bright colors.
- Secure. All internal parts inside housing is protected by cam lock to avoid tampering.
- User friendly. Clutch can be conveniently released without opening casing. Arm can be easily lifted or closed by hand after clutch is released. More intuitive control – 3 separate input for arm up, stop and down.
BR530_90 MAG FOLDING ARM BARRIER GATE
-NLS Technology
– Standard common design
-Arm length : 4 meters
-Speed : 3 second
-Optional arm protection foam lining
BR530_90 MAG FOLDING ARM BARRIER GATE
BR530_90 support 90˚ folding arm to accommodate low height ceiling such as basement parking and multi level parking. BR530_90 design is optimized to be highly affordable for commercial, residential and industrial application.
- No limit switch. Smart sensor auto-detects open and close position for higher accuracy. Combination of unique lever design and smart motor control allow swift arm movement that reduces bouncing at end position.
- Heavy duty. AC motor is stronger and maintenance free (no need to change carbon). Compressed counter balance spring avoid possibility of spring over-stressed and break due to high volume continuous open/close cycle.
- Safe. Arm will auto-reverse when hitting an obstacle during closing. Additional photo beam and traffic light (red & green) can be added to further enhance safety. Built-in MCB to protect against any electric hazard.
- Durable. Sturdy and strong housing (2.5 mm thickness mild steel). Housing is polished, phosphorized and further finished with plastic coating to ensure long lasting bright colors.
- Secure. All internal parts inside housing is protected by cam lock to avoid tampering.
- User friendly. Clutch can be conveniently released without opening casing. Arm can be easily lifted or closed by hand after clutch is released. More intuitive control – 3 separate input for arm up, stop and down.
BR560_90 MAG FENCE ARM BARRIER GATE
-NLS Technology
-Standard common design
-Arm length : 4.5 meters
-Speed : 6 second
– Does not support arm protection foam lining
BR560_90 MAG FENCE ARM BARRIER GATE
BR560_FE has built in grill fence underneath the arm.BR560_FE eliminate the possibility of pedestrian gaining unauthorized access by crawling under the barrier arm. Therefore BR560_FE can effectively control access of vehicle and pedestrian at the same time to achieve higher security level.
- Intelligent. No limit switch – smart processor auto-detects open and close position for higher accuracy. Combination of unique lever design and smart motor control allow swift arm movement that reduces bouncing at end position.
- Heavy duty. AC motor is stronger and maintenance free (no need to change carbon). Compressed counter balance spring avoid possibility of spring over-stressed and break due to high volume continuous open/close cycle.
- Safe. Additional photo beam and traffic light (red & green) can be added to further enhance safety. Built-in MCB to protect against any electric hazard.
- Durable. Sturdy and strong housing (2.5 mm thickness mild steel). Housing is polished, phosphorized and further finished with plastic coating to ensure long lasting bright colors.
- Secure. All internal parts inside housing is protected by cam lock to avoid tampering.
- User friendly. Clutch can be conveniently released without opening casing. Arm can be easily lifted or closed by hand after clutch is released. More intuitive control – 3 separate input for arm up, stop and down.
MAG LONG RANGE READER

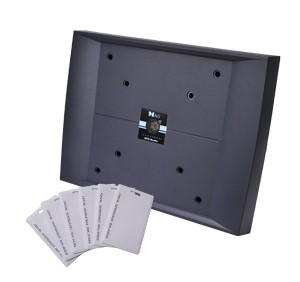

AR200U – MAG MID RANGE READER
– Range 0.7 to 1.2 meter
– Stop car to flash card from side window
– Can penetrate solar film
– Uses passive card (battery less)
AR200U – MAG MID RANGE READER
AR200U is a mid range reader for parking card access system that can penetrate most solar film in market to offer affordable mid range reading without winding down windows. User can comfortably flash their card from inside the car. AR200U uses passive RFID long range card and is compatible with most vehicle car park access control system.
Benefit of AR200U?
- No need to wind down windows.You can touch card from inside your car
- No more getting hand wet during rainy days
- Eliminate waiting time for power windows to come down thus allowing car to pass through faster, this reduce congestion during peak hours
- Better security reduce risk of robbery at car point
- Passive card does not required battery

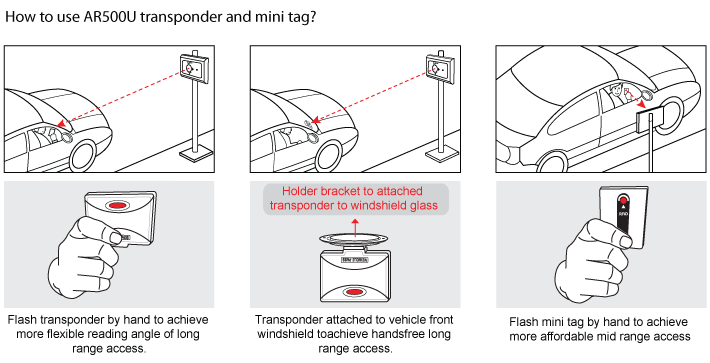

AR500U – MAG LONG RANGE READER
– Range 1.8 to 7 meter
– No need to stop car
– Can penetrate premium solar film
– Uses active transponder / transponder (with battery)
AR500U – MAG LONG RANGE READER

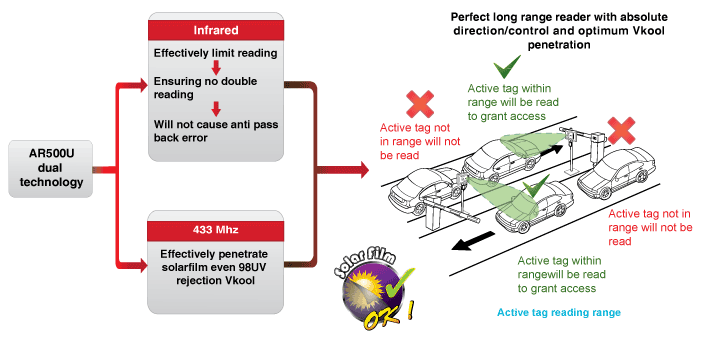

MAG AR500U is a highly affordable active RFID long range reader that can penetrate any windows solar film to truly offer effective long reading distance for parking access control. AR500U uses active RFID transponder and is compatible with most vehicle car park access control system to achieve one card total solution.
Benefit of AR500U?
- Enjoy the convenient of handsfree – no need fully stop to flash card
- No more getting hand wet during rainy days or expose to robbery threat when winding down windows to flash card
- Reduce congestion of long car queue during peak hours
- Add premium prestige reputation to your residential or commercial building

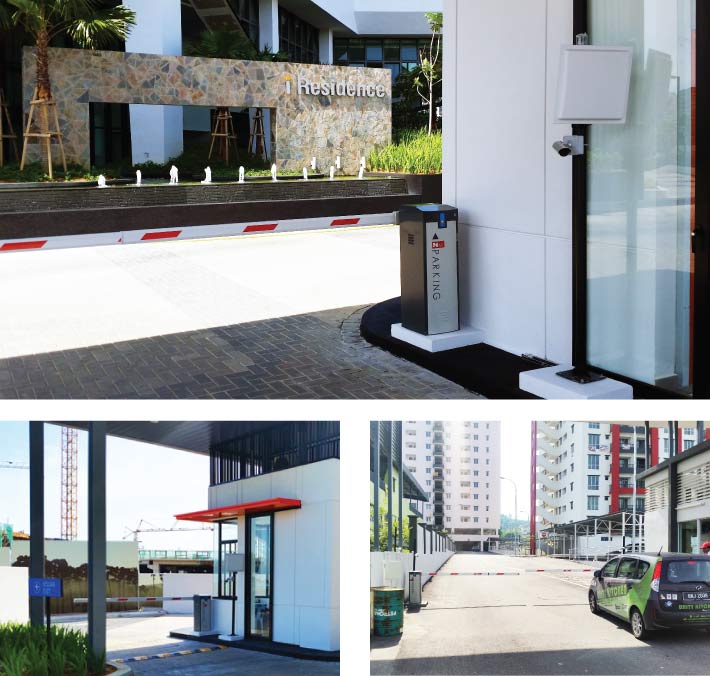

AR300U – MAG UHF LONG RANGE READER
– Range 2 to 6 meter
– Car speed depend on reading range
– Reading range depends heavily on solar film
– Use UHF card (battery less)
AR300U- MAG UHF LONG RANGE READER
AR300U is an ultra high frequency (UHF) long range rfid care reader that read up to 10 meter( free air reading) depends on the type of solar film installed on car, interference at site and proper card reading angle. AR300U has been approved by SIRIM to comply to 919Mhz to 923Mhz frequency as required by Malaysia regulation.
Feature highlight:
- Less Maintenance: UHF card is a passive card (without battery)

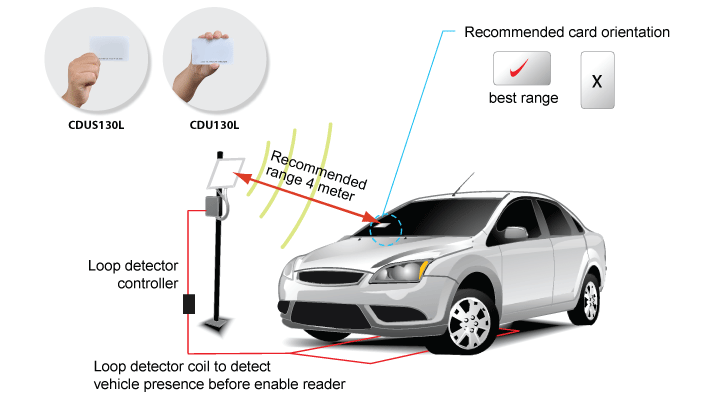

- Triggered reading: Reader will only read card if the trigger signal is enabled. It is recommended to install a loop detector to enable the reader only when there is a vehicle to avoid accidentally reading unwanted cards nearby.
- Delay Function: While the reader is triggered, there is a preset delay of 5 sec for reading each subsequent card to avoid anti-passback error of next approaching car. Delay count will be cancelled when the trigger signal is disabled.
Eg: After the first car travelled away from loop detector, a trigger signal is disabled and the 5 sec delay is cancelled. When the next car travelled into the loop detector, the reader is enabled and will read the next card immediately. - Comply with Malaysia regulation: Malaysia Sirim has certified AR300U to comply frequency range requirement by MCMC. The certificate is available upon request.

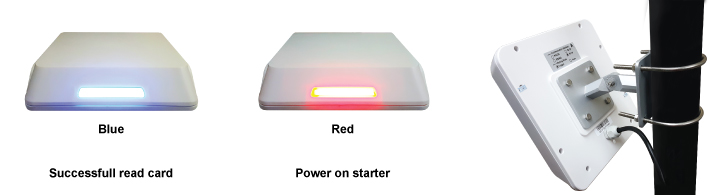

- More user-friendly: LED light at bottom of the reader. Red light to indicate no card presence. Blue to indicate successfully read card.

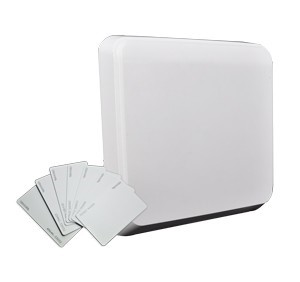

AR900U – MAG UHFLONG RANGE READER
– Range 2 to 10 meter
– Car speed depend on reading range
– Reading range depends heavily on solar film
– Use UHF card (battery less)
AR900U – MAG UHFLONG RANGE READER
AR900U is an ultra high frequency (UHF) long range reader that read up to 7 meter( free air reading) depends on the type of solar film installed on car, interference at site and proper card reading angle. AR900U has been approved by SIRIM to comply to 900 Mhz frequency as required by Malaysia regulation.
Benefit of AR900U?
- Less Maintenance : UHF card is a passive card ( battery less)
- Delay Function : there is a present delay .Eg: Set 5 second delay, when card A is flashed, reader will wait for 5 seconds to scan the same card again.If different card (card B) is flashed within 5 second , it will be scanned. This to avoid continuous transactions to clutter PC reporting.
- It does not cause interference with the existing communication frequency ; a specific UHF bandwidth is allocated by MCMC for this application.
- Fast transaction time, detects a tag as fast as in 300 milliseconds.
MAG ACCESSORIES

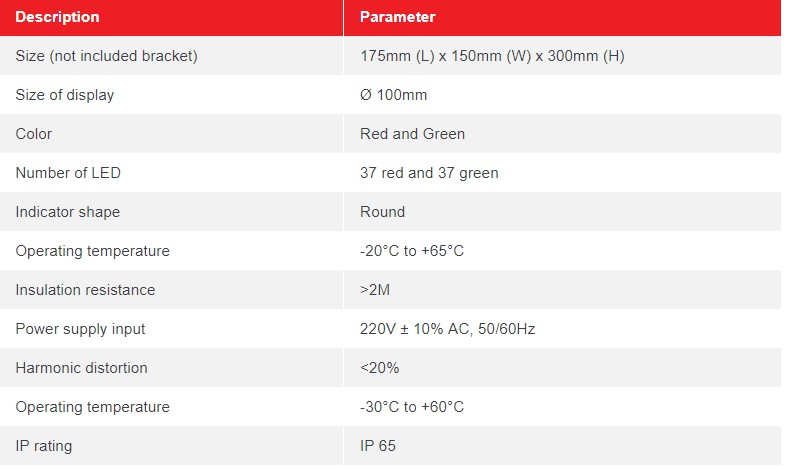

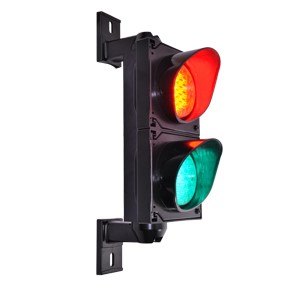

TFL100 – MAG MINI TRAFFIC LIGHT
Heavy Duty Traffic light (red & green) can be added to further enhance safety.
TFL100 – MAG MINI TRAFFIC LIGHT
MAGNET is also one of the traffic light system supplier in Malaysia. We offer mini traffic light control system notifies the status of barrier gate by two difference indicators, Red or Green.
Green light informs user to proceed and Red light notifies user to stop. This greatly reduces the case of vehicle accidentally crashing the barrier arm. MAG mini traffic light is weatherproof based, which specially designed for outdoor usage. Traffic light control system is compatible with most of the barrier gate in the market.

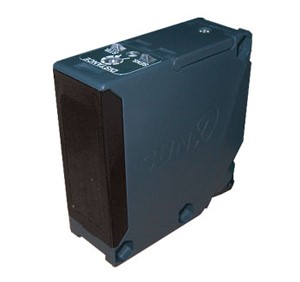

EQ501 – PANASONIC INFRARED TRANSCEIVER
-Range : 0.2 – 2.5 (meter)
-Relay contact output : 20 msec
-Transmitter and receiver built into a single unit
Our Panasonic infrared transceiver comes with transmitter and receiver built into a single unit. Adjustable range 0.2 to 2.5 meter. Relay contact output. 20 msec response time.
Can be installed onto to turnstile as additional security protection to prevent people from crawling under or climbing over the turnstile.
EQ501 – PANASONIC INFRARED TRANSCEIVER
Our Panasonic infrared transceiver comes with transmitter and receiver built into a single unit. Adjustable range 0.2 to 2.5 meter. Relay contact output. 20 msec response time.
Can be installed onto to turnstile as additional security protection to prevent people from crawling under or climbing over the turnstile.
Features :
-
Resists color or angle variations
Due to the advanced optical system, it is not affected by variations in the object’s angle or gross when compared to conventional sensors. Further, as the difference in sensing range between white and black is 5 % approx
Note: Sensing can be performed at a somewhat constant position even if the sensing object is white or black -
Not affected by background object
Because it doesn’t detect objects out of the preset sensing field, it will not malfunction even if a personnel walks behind it or if there are other machines or conveyors in the background -
An easy to set adjuster with indicator
Equipped with a 2-turn adjuster with indicator that is easy to set either for short or long distances

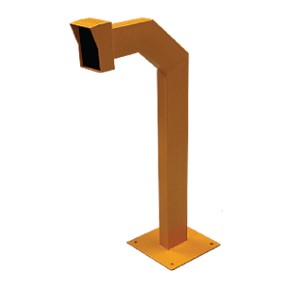

GS-SD MAG GOOSENECK
-Typically used to house proximity reader in parking access control system
-Weatherproof
Standard gooseneck to contain Soyal reader for parking access control application
- Waterproof to protect reader
- Weather proof with Epoxy paint coating
GS-SD MAG GOOSENECK
Standard gooseneck to contain Soyal reader for parking access control application
- Waterproof to protect reader
- Weather proof with Epoxy paint coating
MAG LOOP DETECTOR
BRD01 – MAG STANDARD VEHICLE LOOP DETECTOR
Optimum performance single channel loop detector. Design to be more affordable for site that require standard function.
BRD01 – MAG STANDARD VEHICLE LOOP DETECTOR
This is a single channel inductive loop detectors which is based on the changes in the inductance that are caused by metal parts of a vehicle. These signals are then picked up & evaluated by a microprocessor and when operation voltage is applied, its calibrations becomes automated thus resulting in ease of use.
BEA MATRIX S-220 LOOP DETECTOR
Optimum performance single channel loop detector. Design to be more affordable for site that require standard function.
BEA MATRIX S-220 LOOP DETECTOR
This is a single channel channel inductive loop detectors which is based on the changes in the inductance that are caused by metal parts of a vehicle. These signals are then picked up & evaluated by a microprocessor and when operation voltage is applied, its calibrations becomes automated thus resulting in ease of use.
